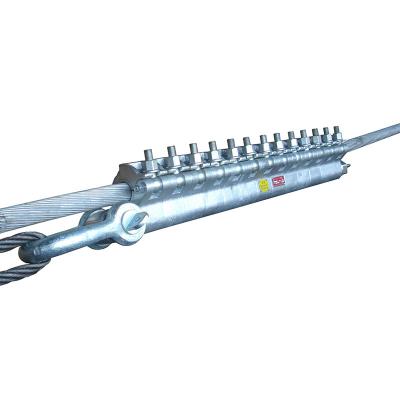

Bolt Type Radial Locking Clamp
Uses:
- Can be used in large section conductor and long span high tensioning construction occasion , protect conductor effectively
- Rated load :150kN
- The diameter of applicable conductor range :Φ37～Φ45mm(should confirm the diameter of conductor before proceeding production )
- Tighten moment of compression bolt : 120N.m
- Weight :50kg.
Notes:
- the aluminium liner is replaceable
